Builders, contractors, and tradespeople — meet the DLF Ladder-Lift
Whether you’re working in construction, maintenance, renovation, or installation, our DLF Ladder-Lift might be exactly what you need to get the job done safer, faster and easier. Conceived, developed and tested by builders – for builders.
Wondering what our Ladder-Lift is?

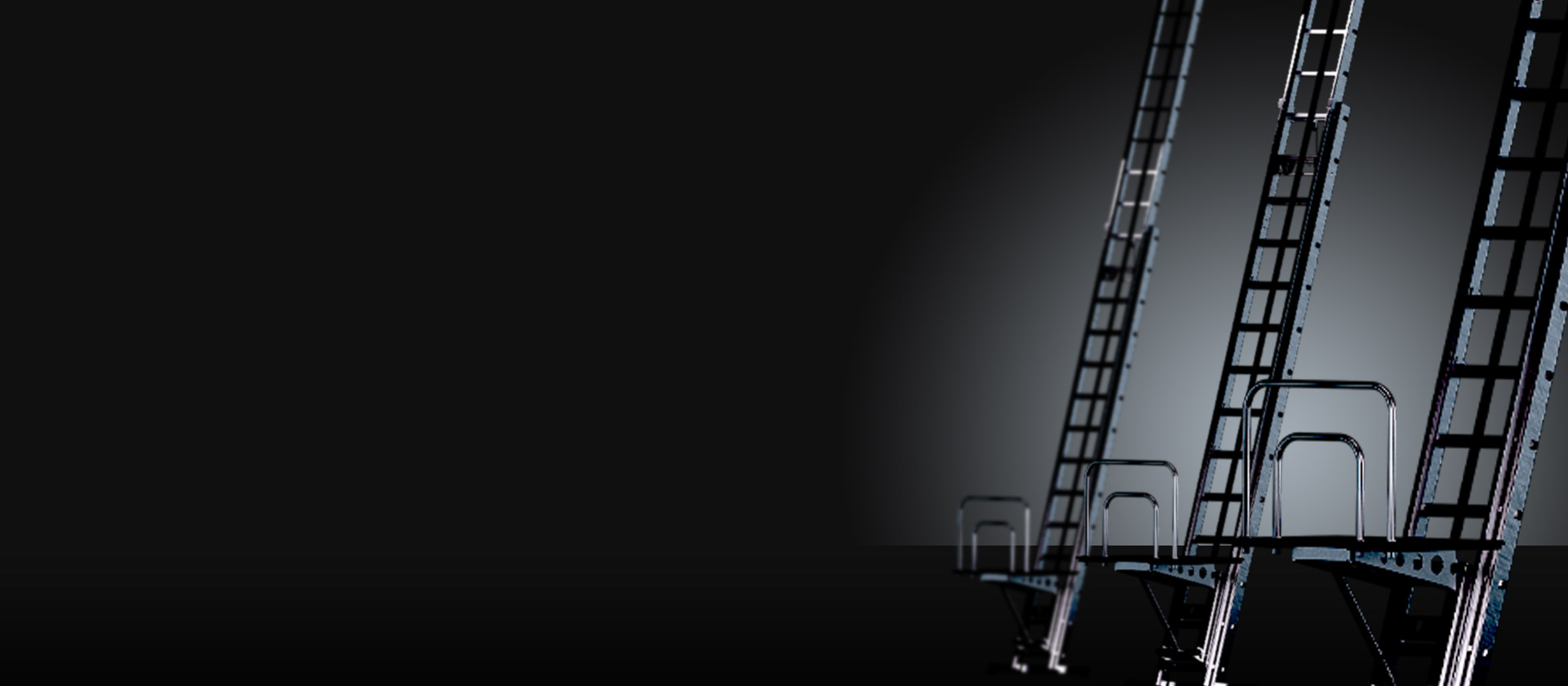

It’s a pro-level extending ladder that doubles as a pro-material lift — and you can switch modes in under two minutes.
Here’s how it works :
- As a Ladder – Set it up and climb like any standard ladder.
- As a Lift – three quick steps:
• Set the ladder top section to your desired height.
• Stack the lightweight guidance extensions on the lower section.
• Place the trolley, carrier and winch and you are ready to go.
The Magic:
The Ladder-Lift’s extensions are short versions of the ladder’s top section. Both hold sturdy guidance tracks for the trolley. Once you lower the top-section onto its stack, the guidance track for the trolley runs from the bottom to the top of the ladder.
Safety Comes First
The trolley and carrier are built for the job. And its winch comes with built-in safety features:
- Mechanical load limiter – set at 100 kg to prevent overload and jamming.
- Mechanical auto-lock – stops all movement when the winch is not being driven.
- Controlled lifting speed – lifting speed set to 15 m/min (50 ft/min) for safe, manageable operation.
The real effort and time in lifting is getting your stuff to the lift, loading and unloading. Work that don’t change whether you lift in one cycle or several cycles. A high lifting capacity – say 240kg – sounds appealing. But splitting a load of 240 in 2 batches of 120kg or even 4 batches of 60kg costs just a few minutes extra. Keep safe.
Standard models and specs
The Ladder-Lift features a sturdy, rope-operated extension ladder. It has two sections and is available in these versions:
| Version | Lenght & height used as ladder | Length & height used as lift | |||||
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
| 2×14 | 4.00 | 7.08 | 6.84 | 8.03 | 6.80 | 6.57 | 27.7 |
| 2×16 | 4.56 | 7.92 | 7.65 | 8.84 | 7.64 | 7.38 | 31.3 |
| 2×18 | 5.12 | 9.04 | 8.73 | 9.92 | 8.76 | 8.46 | 34.9 |
| 2×20 | 5.68 | 9.88 | 9.54 | 10.73 | 9.60 | 9.27 | 38.5 |
| All lengths in meters and weights in kilogram | |||||||
